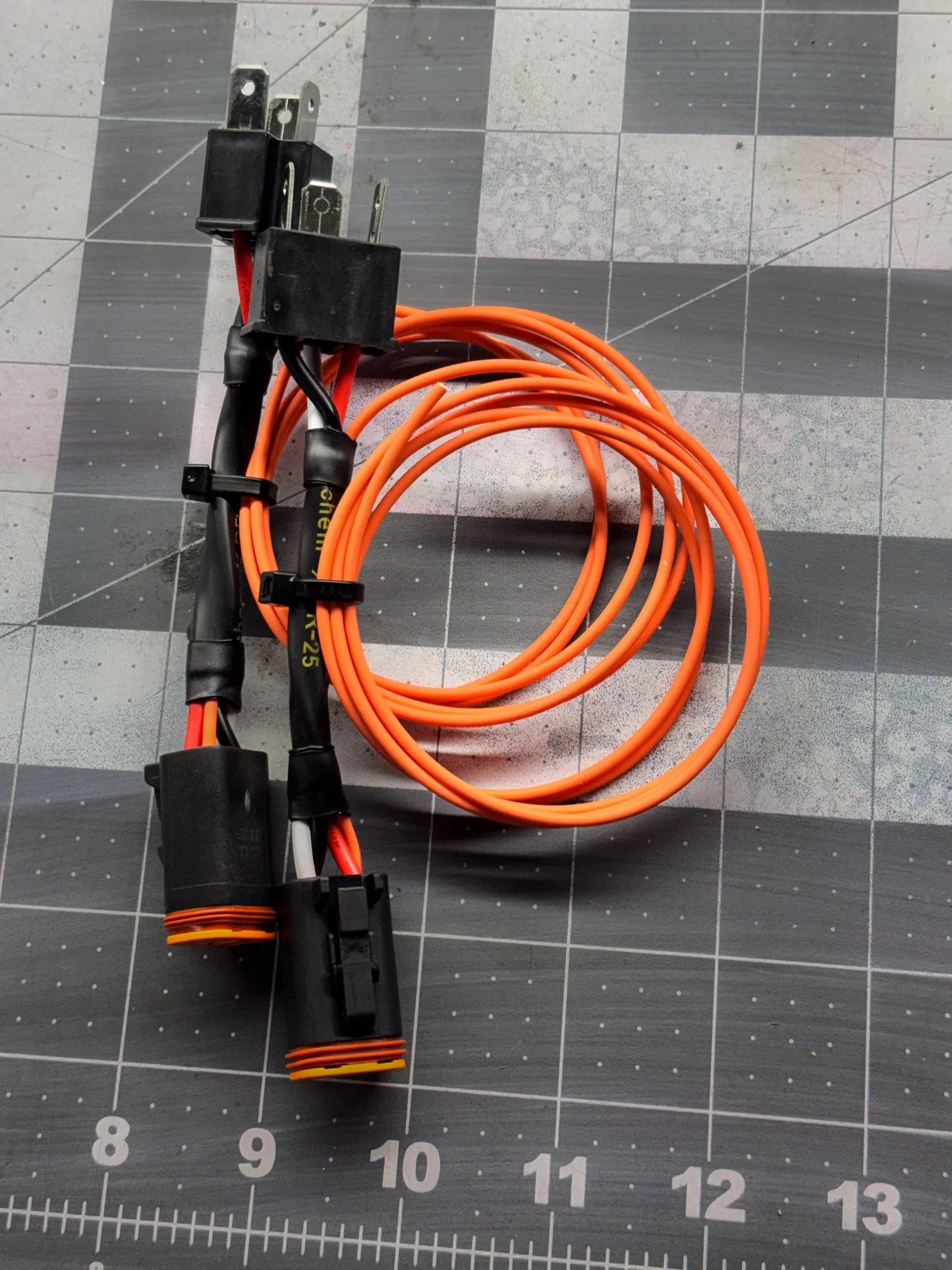

These headlight adapters allow you to connect Baja Designs LP6 DOT headlights directly to the factory headlight connector on Jeep TJ and LJ models. No permanent modifications to factory wiring. Installation is clean and fully reversible.
Each adapter is properly pinned to retain factory high and low beam function and is built using the best terminals and DR-25 heatshrink for long-term durability.
Every set includes a 3’ lead for the LP6’s DRL, giving you flexibility during installation. The extended lead allows for clean routing without additional extensions. The backlight can be integrated into:
Running lights
Turn signals
Any switched 12V source
Notice!
The DOT LP6 draws less current than the factory halogen bulbs on TJ/LJ models, making it fully compatible with the stock headlight circuit. LP6 Pro’s are a different story, the LP6 Pros exceed the current capacity of the factory TJ/LJ headlight wiring. A fused relay harness pulling power directly from the battery is required. Do not power LP6 Pros through the factory headlight circuit or this adapter. A custom Harness can be made for the Pros, If interested, please reach out to us.
