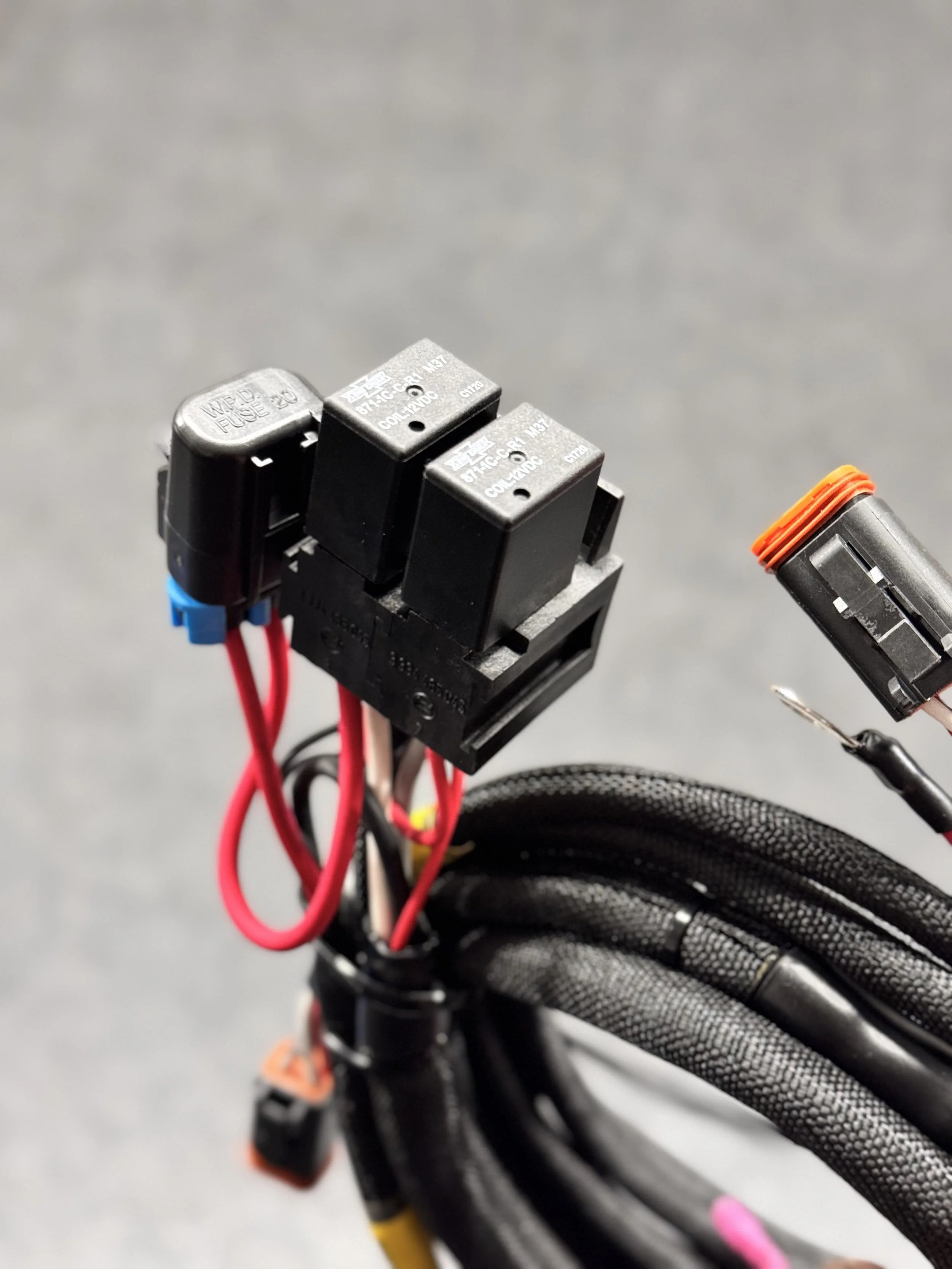

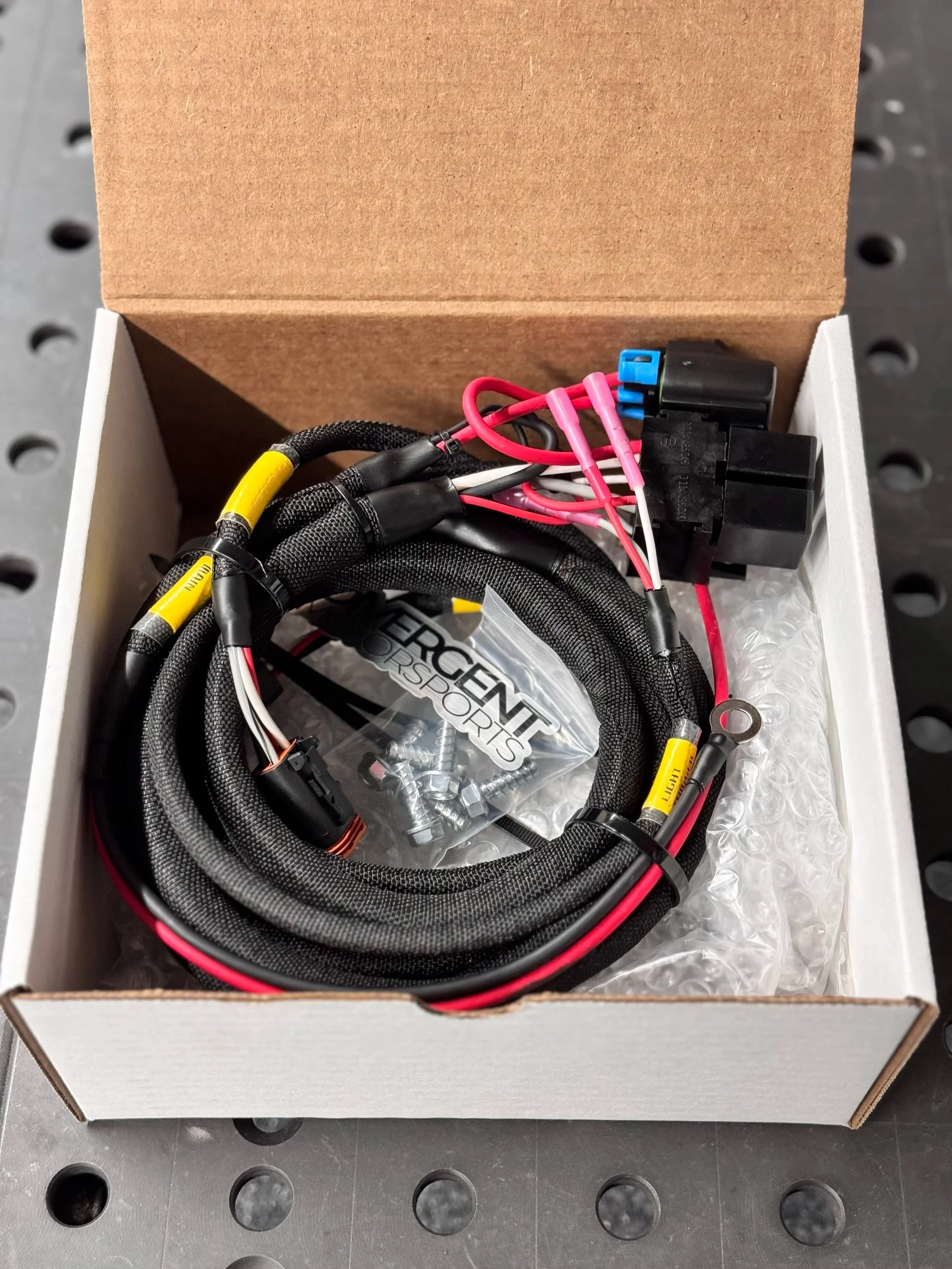

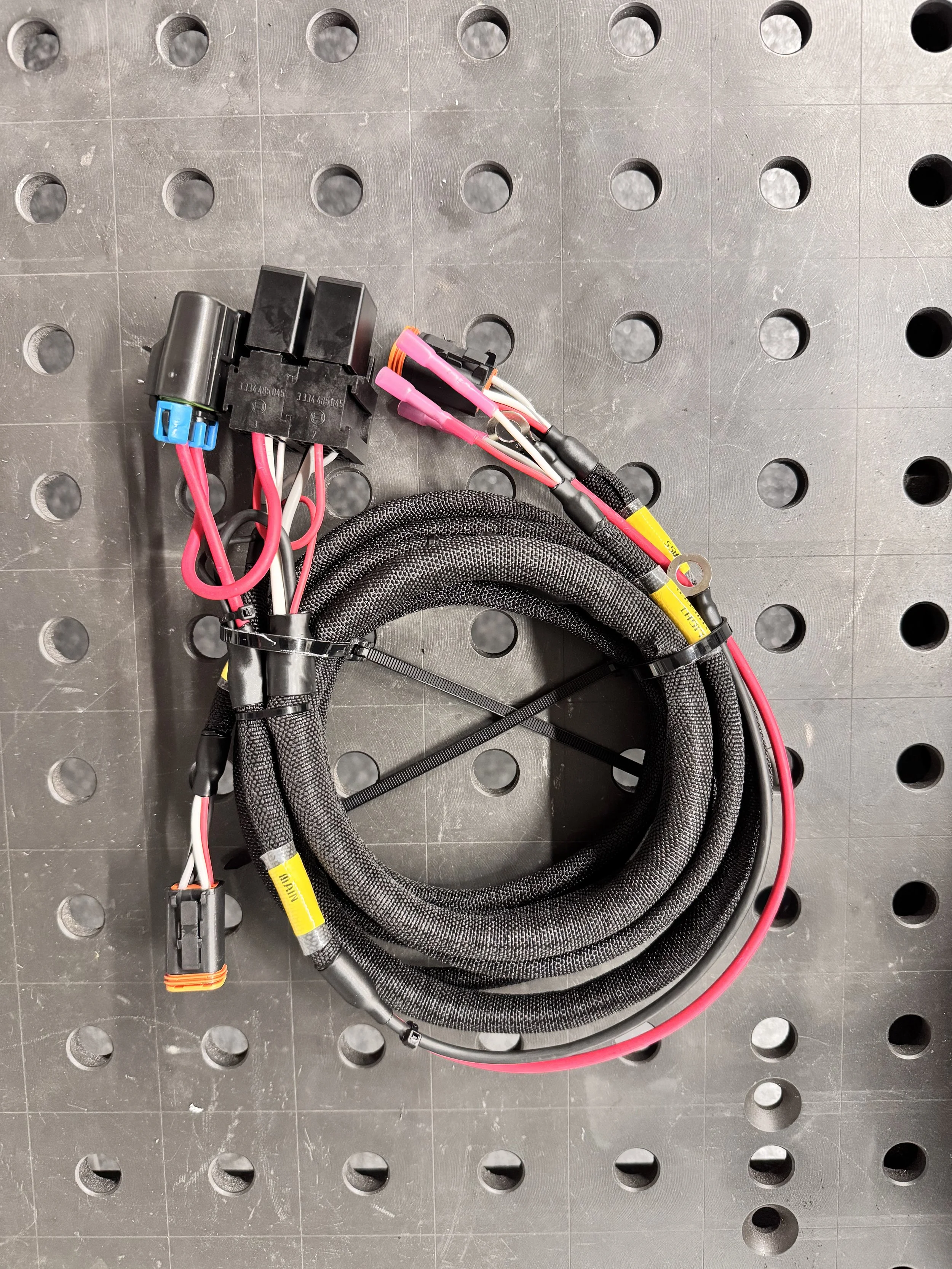

This wiring harness is designed to seamlessly integrate your Baja Designs LP6 headlights with your Jeep’s factory headlight switch. Because your Jeep uses a signal-based output instead of a traditional 12 V trigger to power the headlights, the harness is engineered for that… removing the guesswork and making installation straightforward.
Running-light activated low beam – The low beam is powered through the running light circuit rather than the factory low-beam headlight circuit, ensuring smooth operation with your Jeep’s controls.
Baja Designs compliant – The harness retains the required low-beam lock-out, preventing the high and low beams from being activated together, as specified by Baja Designs’ wiring standards.
Flexible backlight wiring – The backlight trigger is left open so you can choose how to use it. Tied into running lights, an accessory switch, or left independent, you decide.
Custom option available – For those who want even more integration, a custom version can be built to run the LP6 backlight in conjunction with your turn signals.
The result is a clean, factory-style solution that keeps your Jeep’s controls intact while giving you the flexibility to set up your LP6 headlights the way you want.
Please note: this harness is built to order and currently has a lead time of approximately two weeks. Each harness is hand-assembled and tested to ensure proper function with your Jeep’s factory controls, which takes additional time but guarantees a reliable, plug-and-play product when it arrives.
